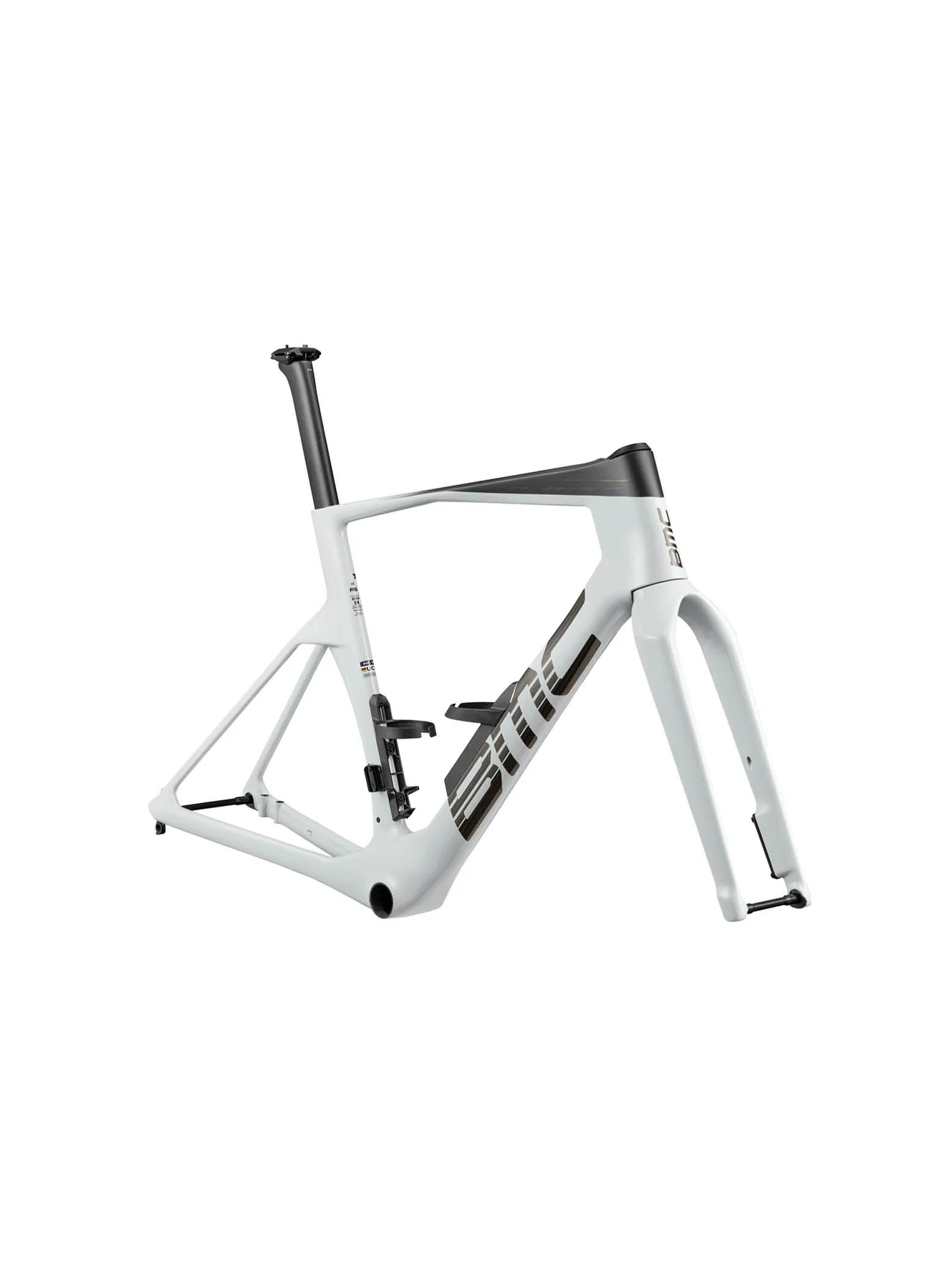

BMC Teammachine R 01 Frameset VAR2 (no handlebar) (wht bru cbn)

~~$37,300.00~~ $31,705.00

Off-White / Carbon

The Teammachine R 01 VAR 2 Frameset, uncompromising performance ready for an uncompromising build.

47 SKU: 30008107

51 SKU: 30008108

54 SKU: 30008109

56 SKU: 30008110

58 SKU: 30008111

61 SKU: 30008112

Taking race winning performance and offering it in an exclusive "Off-White / Carbon" colorway, ready to be your foundation of your perfect build, the Teammachine R 01 VAR 1, gives you the option to finish your bike as you dreamt. With all the time saving aerodynamics, sprint winning power transfer, corner railing handling and road smoothing compliance of the Teammachine R 01, this "Off-White / Carbon" frameset comes ready for the build you’ve always dreamed of. Think pro-team build for one, this lightweight frameset, developed with Red Bull Advance technology redefines what a race bike can do. Climbs, cobbles, sprints, corners? It’s got it covered and then some. Build it as you want, ride it as fast as you can.

Technology

Halo Fork

To create speed, we pushed the fork legs wider, forming a distinctive ultra-wide front end. Halo shutters turbulent air away from the frame, kills aero stall and unlocks clean, usable speed.

Integrated Cockpit System (ICS)

Minimal, clean, simple: the innovative functionality of the Integrated Cockpit System (ICS) is Swiss design and engineering where it counts. Hidden cables keep the front of your bike looking and feeling fast.

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever developed on a road bike. The reasoning? You get the cleanest air due to the surface area. UCI approved.

All-Aero Seatpost

A seatpost that’s slimmer, deeper, more compliant, and lighter than ever, with a clamp mechanism that’s easier to access and maintain. Also compatible with an integrated number-plate holder – making it th

Frameset

Seat

Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Drivetrain

Front Derailleur:
Riveted derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline)

Rear Derailleur:
BMC derailleur hangers: SHIMANO Direct Mount + SHIMANO or SRAM Direct Attachement (standard)

Bottom Bracket:
Press-Fit 86.5mm Road

Brakes

Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear

Accessories

In the Box:
Aerocore Bottle Cages | Shimano Direct Mount derailleur hanger | Classic SRAM/Shimano derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
1830g | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
BB Drop	69	69	69	69	69	69
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	184	211
Head Tube Angle	71.5°	71.5°	72.3°	72.3°	72.3°	72.3°
Rear Center	410	410	410	410	410	410
Seat Angle	74°	74°	73.5°	73.5°	73°	73°
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	0	0	10	10	10	10
Standover Height	721	755	781	799	813	836
Top Tube	515	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
